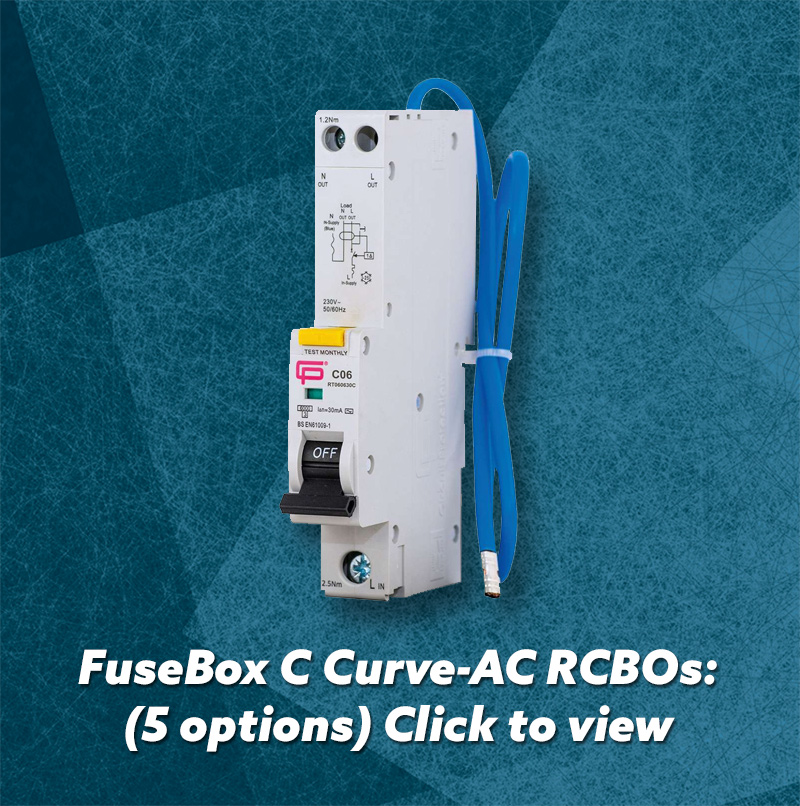

FuseBox 30mA C Curve Type AC 6kA Single Pole RCBOs

FuseBox AC Type RCBO's (Residual Current Circuit Breaker with Overload Protection) provides residual and overload protection in one neat device. Available in current ratings that range from 6A to 32A and in B or C type tripping curves.

Type AC RCBOs are used for general purposes on AC (Alternating Current) only circuits. If you require DC (Direct Current) protection see the Type A versions which are also available.

VARIATIONS

1. RT060630C RCBO SPN 6A 30mA 6kA
2. RT061030C RCBO SPN 10A 30mA 6kA
3. RT061630C RCBO SPN 16A 30mA 6kA
4. RT062030C RCBO SPN 20A 30mA 6kA
5. RT063230C RCBO SPN 32A 30mA 6kA

• Standard 18mm - one modular width design.
• Compatible with FuseBox consumer unit.
• Breaking capacity: 6kA.
• AC Type Single Pole.
• Current Rating: 6 Amp, 10 Amp, 16 Amp, 20 Amp and 32 Amp
• Dimensions: (H) 83mm (W) 18mm (L)74mm
