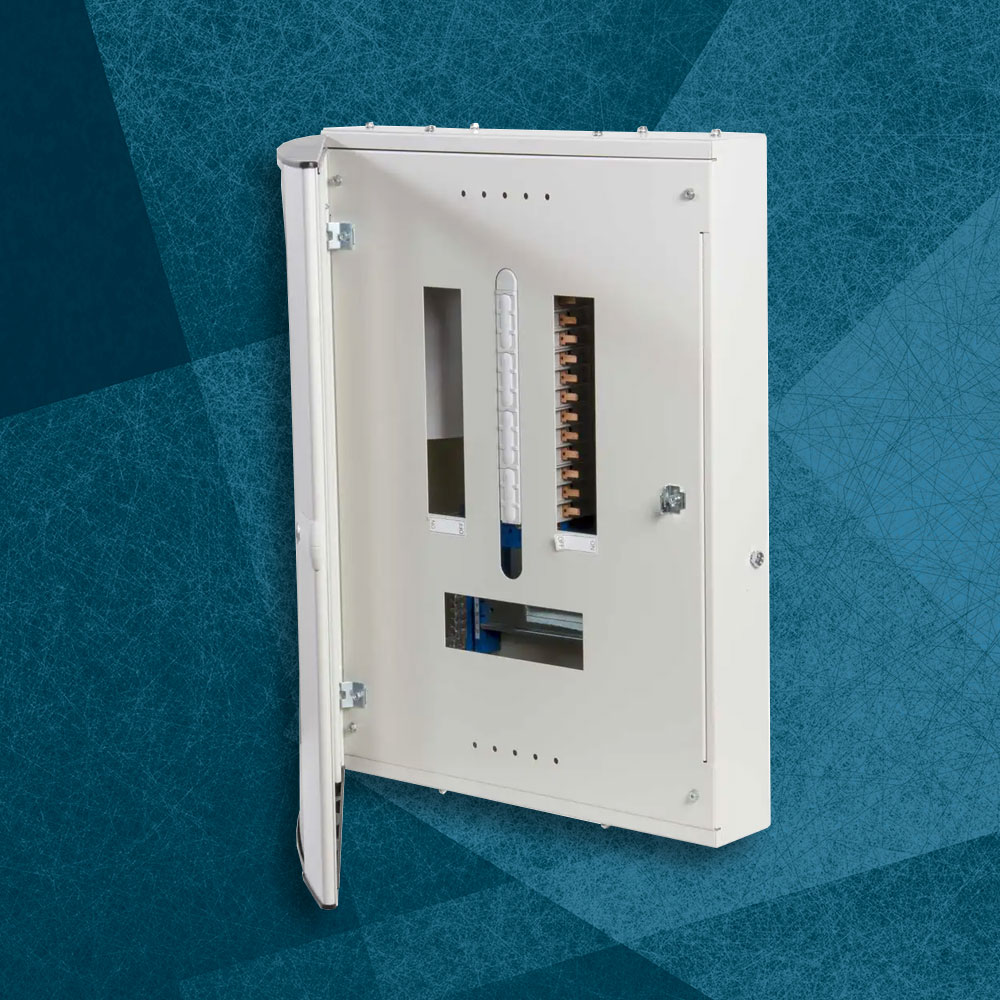

Hager 8 Way 125A TP+N Type B Distribution Board without Incomer

Enclosure degree of protection IP3X.

Supplied without incoming and outgoing devices.

Complies with BS EN 60439-3.

Incoming device must be 100A or 125A [all options sold separately and fits within board - JK11003S / JK11004RH / JK11004RL / JK11004RLD / JK11004RM / JK11004RMD / JK11004S / JK11253S / JK11254D].

• Busbar Rating: 125A
• Current Rating: 125A
• Dimensions: (H) 625mm x (W) 465mm x (D) 132.5mm
• Door Type: Glazed Door
• Guarantee: 2 Years
• IP Rating: IP3X
• Incoming Device: Not Supplied
• Incoming Terminal Capacity: Earth - M8 Stud, Neutral - 50mm² or M5 Stud
• Lockable: Yes
• Material: Steel
• Mounting: Surface
• Number of Outgoing Ways: 8
